ACAI ACF Module: terraform-aws-acf-observability

GitHub Repository | Terraform Registry

Solution

Terraform module to deploy cross-account CloudWatch Observability Access Manager (OAM) resources on AWS.

This module is part of the [ACAI Cloud Foundation (ACF)][acai-docs-url] and enables centralized, cross-account observability by establishing OAM sinks and links across an AWS Organization. It supports sharing CloudWatch Metrics, Log Groups and X-Ray Traces from multiple member accounts into a single monitoring account.

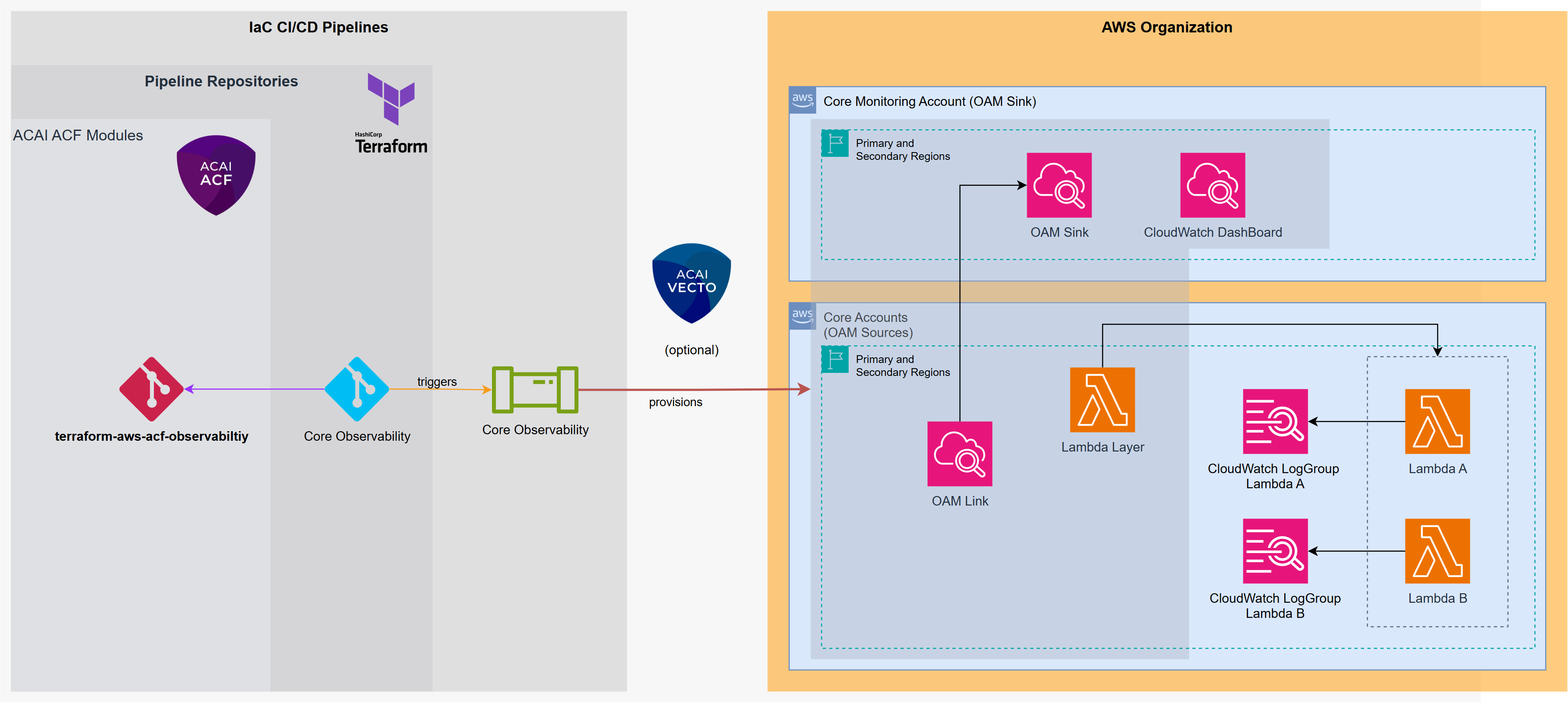

Architecture

architecture

Overview

AWS CloudWatch Observability Access Manager (OAM) allows you to link multiple AWS accounts (sources) to a central monitoring account (sink) so that telemetry data - metrics, logs and traces - from all source accounts becomes visible in the monitoring account's CloudWatch console without the need to switch between accounts.

This module automates the setup of that cross-account observability pattern:

Component Deployed to Purpose
OAM Sink Monitoring account Receives shared telemetry from source accounts
OAM Link Each source (member) account Connects the member to the central sink
CloudWatch Dashboard Monitoring account Aggregated Lambda Invocations & Errors view
Lambda Layer (optional) Each source (member) account Standardized logging via ACAI Powertools

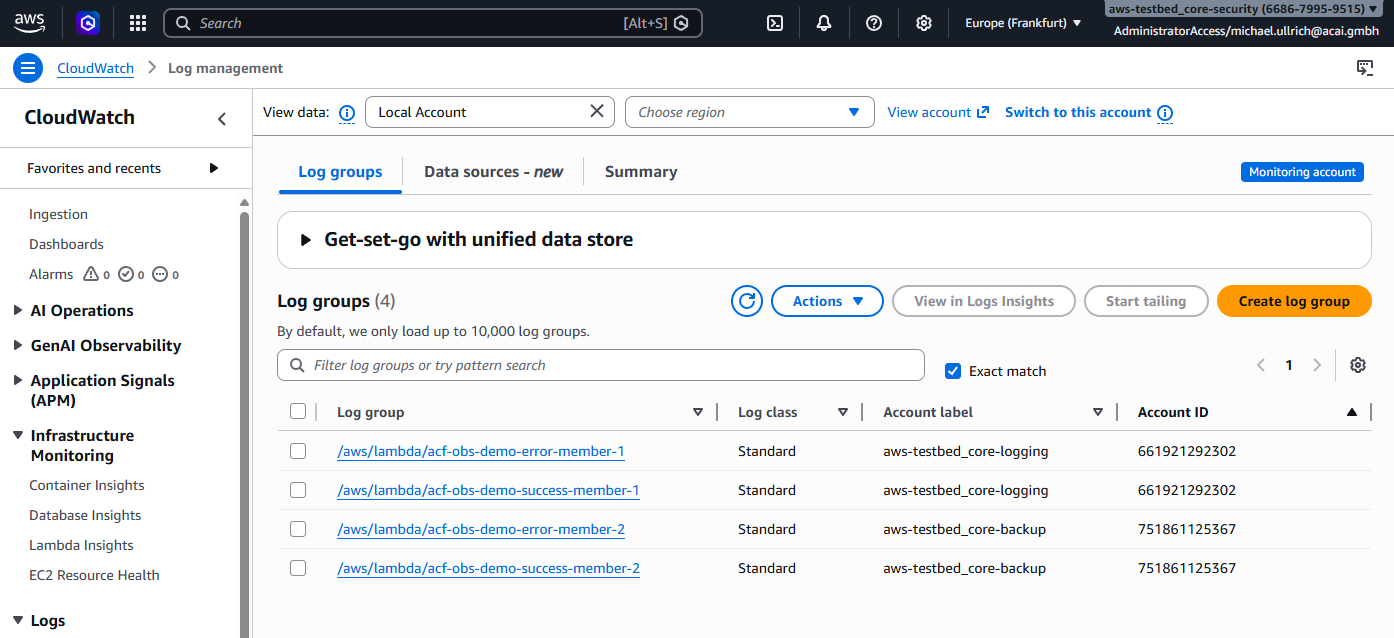

Once deployed, the monitoring account can view Log Groups, Metrics and Traces from all linked member accounts - as shown in the screenshot below where log groups from two member accounts (aws-testbed_core-logging and aws-testbed_core-backup) appear in the monitoring account's CloudWatch console:

monitoring-account

Features

  • Multi-region deployment - Sink and link resources are deployed to a configurable primary region plus any number of secondary regions.
  • OAM Sink with IAM policy - Creates an OAM sink in the monitoring account with a sink policy that authorises specific member accounts to share CloudWatch::Metric, Logs::LogGroup and XRay::Trace resources.
  • OAM Link with filtering - Creates OAM links in each member account. Supports optional log_group_filter and metric_filter to control which telemetry is shared.
  • CloudWatch Dashboard - Automatically provisions a cross-account Lambda overview dashboard (Invocations & Errors) in the monitoring account.
  • Lambda Layer provisioning (optional) - Deploys a standardised ACAI Powertools Lambda layer across all regions with SSM parameter publication for easy layer discovery.
  • Logging Factory - The layer ships with a built-in logging_factory module that wraps AWS Lambda Powertools into a single setup_logging() call, giving every Lambda a consistent, structured JSON log format out of the box.
  • Resource tagging - All resources are tagged with module metadata (acf_module_provider, acf_module_name, acf_sub_module_name, acf_module_source) and support custom tags via resource_tags.
  • ACAI VECTO integration - Ships with CI/CD principal templates (oam_sink.tftpl, oam_member.tftpl) that VECTO uses to provision pipeline-principals into each member core-account.
